Introduction to Functions

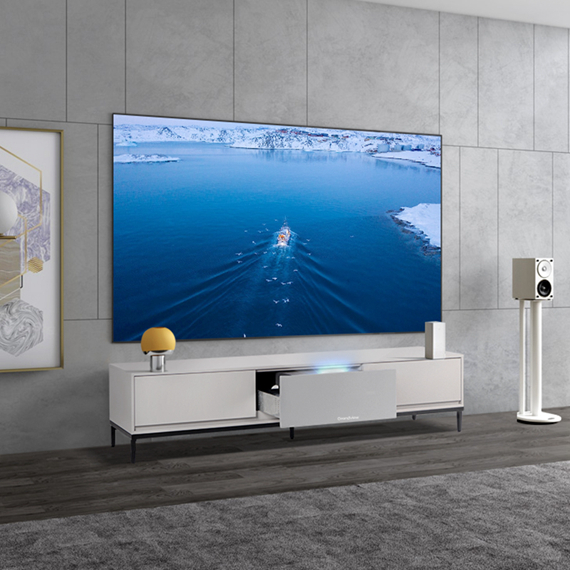

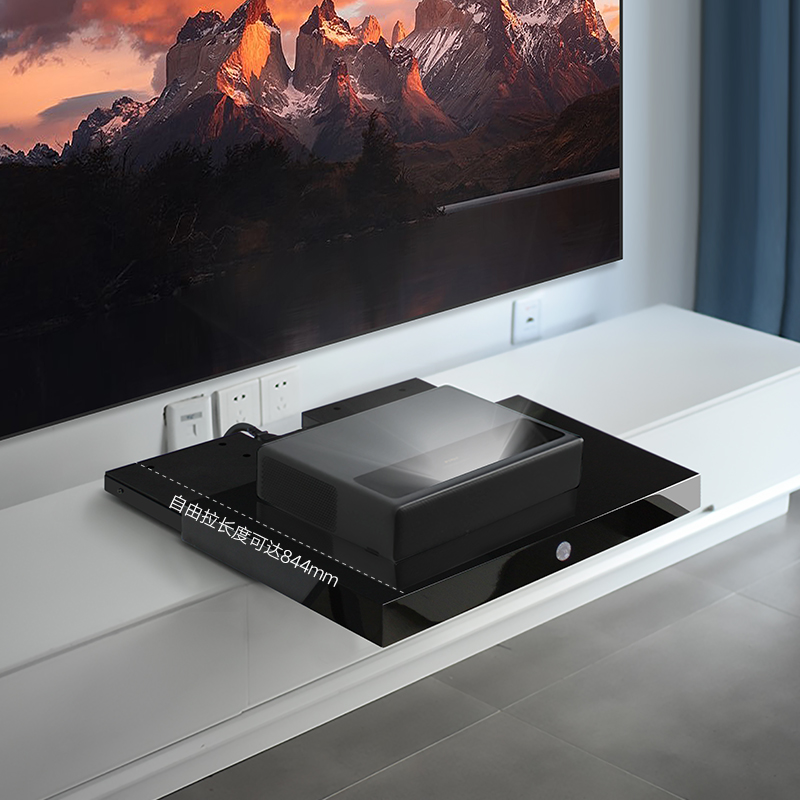

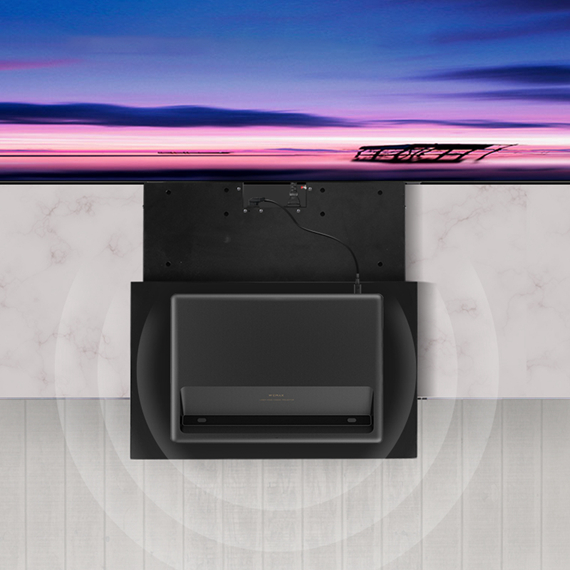

The intelligent mobile platform of laser projector is applied to play TV programs and entertainment at home, bringing you a brand-new and intelligent feeling in the process of experiencing science and technology. When you turn on the projector, the electric telescopic table automatically opens with the projector.

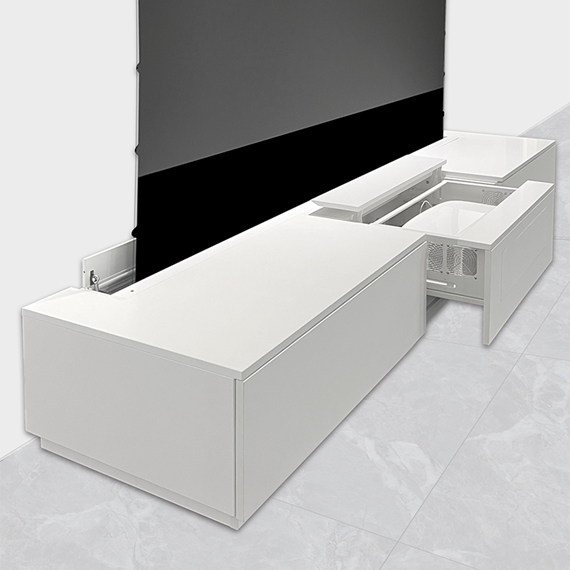

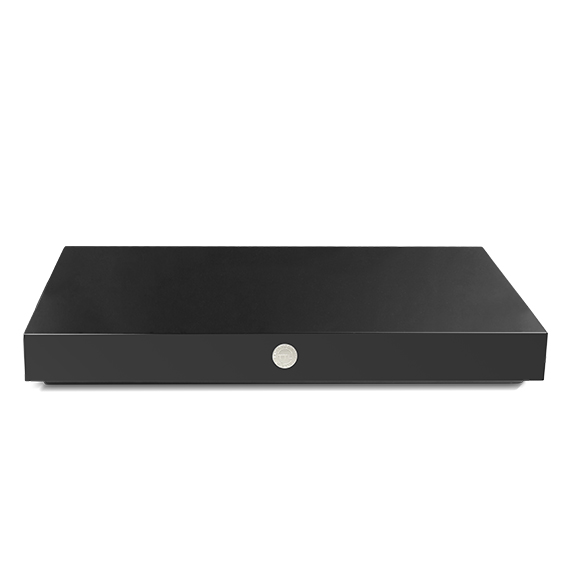

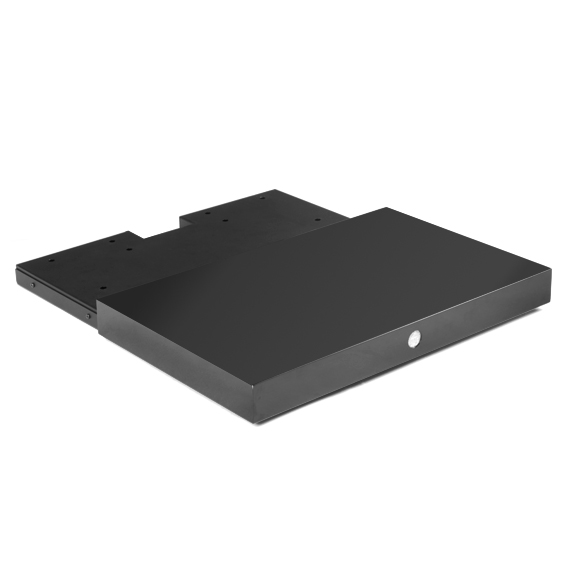

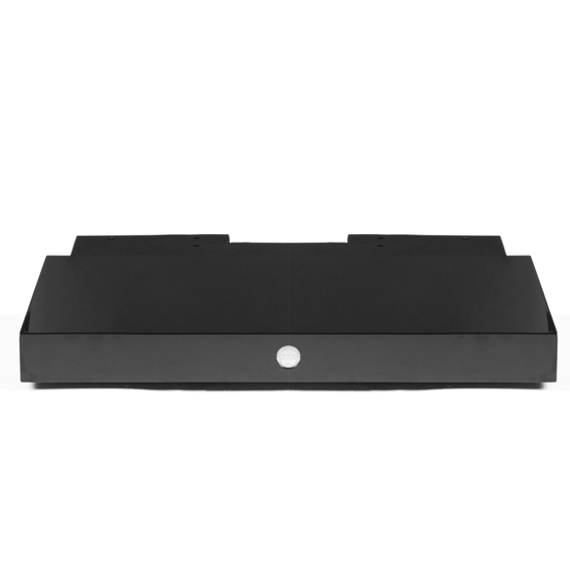

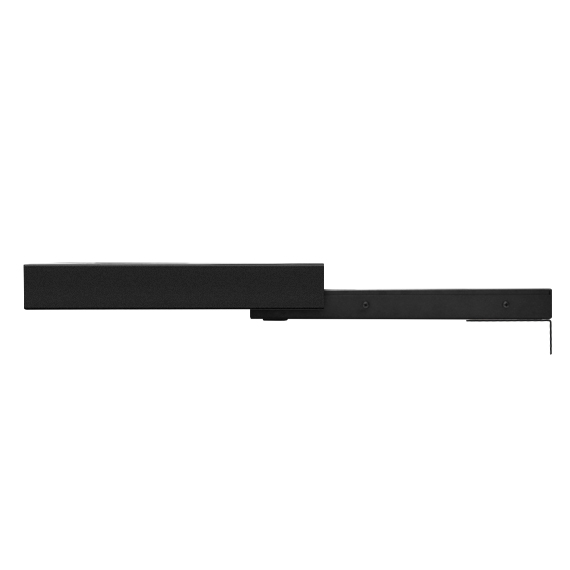

GMPU series laser TV electric telescopic stage is driven by motor, rack and double slide rails move in parallel. Through the optocoupler counting, it can accurately locate. The internal mechanical structure precision of the laser TV electric telescopic stage is extremely high, at the same time, it is fully durable, and the shell can match the home color.


major function

1、 Industrial grade linear guide block, long-term reciprocating operation without virtual position

2、 Pearlescent black metal paint surface treatment, elegant texture

3、 Synchronous projector switch, built-in constant pressure signal switch port connected to laser projector

4、 There is no limit position for the electron, and one key can reach the required moving distance

5、 Telescopic distance: 0-360mm ultra long stroke

6、 Self lubricating parts, life cycle maintenance free

7、 Completely silent operation

8、 Control mode: wireless remote control, dc5-12v trigger


Product Index
Dispose
Basic control mode
parameter
Product Model
  • GMPU-T1
  • GMPU-T2
  • GMPU-T4
  • GMPU-T5
    • Overall dimension(D*W*H)(mm)
      584×362×67mm
    • Net weight(kg)
      14.6
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      300*550*200
    • Maximum load(kg)
      15
    • Rated power(w)
      20
    • Maximum telescopic stroke(mm)
      260mm
    • Lifting accuracy(mm)
      <1mm
    • noise(dB)
    • Voltage(v)
      110v/220v
    • jib attachment(mm)
    • Door frame shape(mm)
    • Ceiling openings(mm)
    • Ceiling height(mm)
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      16
    • Package size (D*W*H)
      480x700x190
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      700*475*67mm
    • Net weight(kg)
      19.6
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      400*650*200
    • Maximum load(kg)
      30
    • Rated power(w)
      20
    • Maximum telescopic stroke(mm)
      360mm
    • Lifting accuracy(mm)
      <1mm
    • noise(dB)
    • Voltage(v)
      110v/220v
    • jib attachment(mm)
    • Door frame shape(mm)
    • Ceiling openings(mm)
    • Ceiling height(mm)
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      23
    • Package size (D*W*H)
      570x820x190
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
    • Net weight(kg)
      128.8
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      350*600*160
    • Maximum load(kg)
      20
    • Rated power(w)
      20
    • Maximum telescopic stroke(mm)
      185
    • Lifting accuracy(mm)
      <1mm
    • noise(dB)
    • Voltage(v)
      110v/220v
    • jib attachment(mm)
    • Door frame shape(mm)
    • Ceiling openings(mm)
    • Ceiling height(mm)
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      158.8
    • Package size (D*W*H)
      2940x610x500
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      620x395x57
    • Net weight(kg)
      15
    • Maximum load(kg)
      20
    • Rated power(w)
      20
    • Maximum telescopic stroke(mm)
      290
    • Lifting accuracy(mm)
      <1mm
    • noise(dB)
    • Voltage(v)
      110V/220V
    • jib attachment(mm)
    • Door frame shape(mm)
    • Ceiling openings(mm)
    • Ceiling height(mm)
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
      Y
    • Wireless remote control(Y/N)
      Y
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      17.7
    • Package size (D*W*H)
      750x525x190
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
