PROJECTOR MOUNT-TTL

PROJECTOR MOUNT

GPCN-E

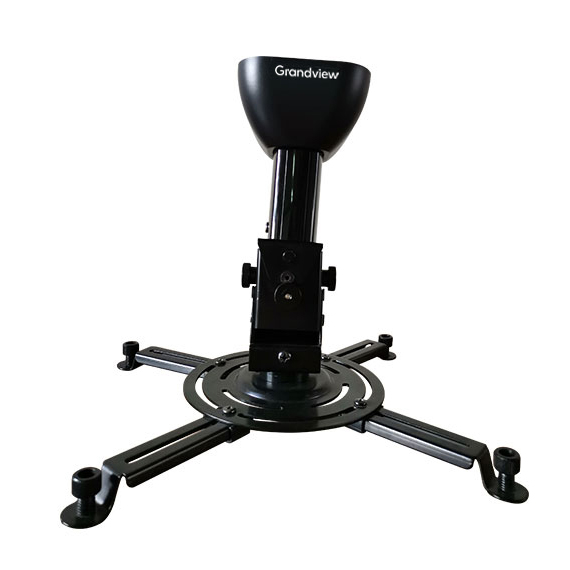

GPCN-E series

Introduction to Functions

.Wire storage

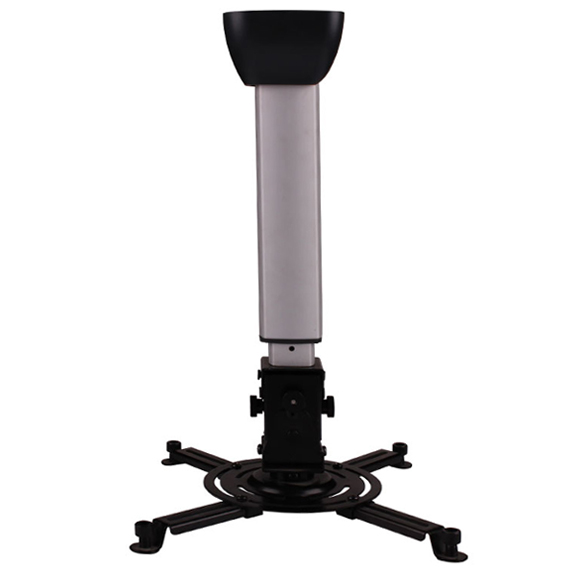

.Retractable pole for height adjustment

.Can adapt to the ceiling tilted <15°

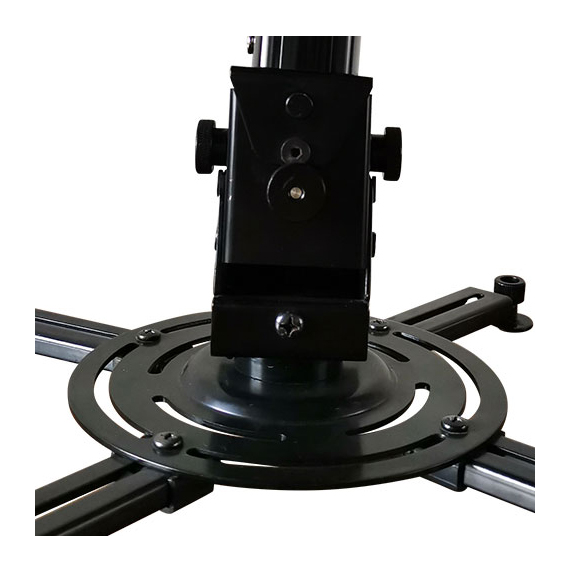

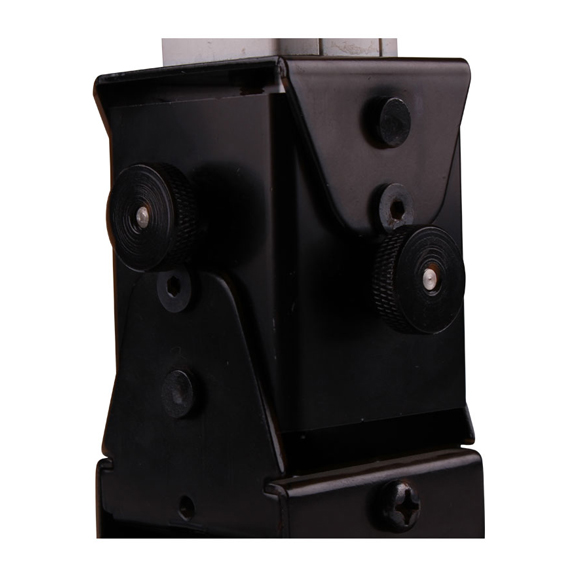

.The projector mounting feet can be tilted ±15° vertically and ±8° horizontally

. horizontal rotation

major function

Product Index

Dispose

Basic control mode

parameter

Product Model

GPCN-E4560II
GPCN-E3540II
GPCN-E4560
GPCN-E3540

- Overall dimension(D*W*H)(mm)

  265×265×445
- Net weight(kg)

  2.18
- Maximum load(kg)

  10
- Rated power(w)
- Maximum telescopic stroke(mm)

  295-485
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.53
- Package size (D*W*H)

  380x205x85
- Wireless Control(Y/N)

  15 15 8 8
- Suitable hole spacing of projector (mm)

  φ45-φ345
- Optional control mode
- Overall dimension(D*W*H)(mm)

  265×265×345
- Net weight(kg)

  2.02
- Maximum load(kg)

  10
- Rated power(w)
- Maximum telescopic stroke(mm)

  195-285
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.37
- Package size (D*W*H)

  280x205x85
- Wireless Control(Y/N)

  15 15 8 8
- Suitable hole spacing of projector (mm)

  φ45-φ345
- Optional control mode
- Overall dimension(D*W*H)(mm)

  270×270×445
- Net weight(kg)

  2.18
- Maximum load(kg)

  10
- Rated power(w)
- Maximum telescopic stroke(mm)

  295-485
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.53
- Package size (D*W*H)

  380x205x85
- Wireless Control(Y/N)

  15 15 8 8
- Suitable hole spacing of projector (mm)

  φ29-φ390
- Optional control mode
- Overall dimension(D*W*H)(mm)

  270×270×345
- Net weight(kg)

  2.02
- Maximum load(kg)

  10
- Rated power(w)
- Maximum telescopic stroke(mm)

  195-285
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.37
- Package size (D*W*H)

  280x205x85
- Wireless Control(Y/N)

  15 15 8 8
- Suitable hole spacing of projector (mm)

  φ29-φ390
- Optional control mode

Installation Control Video

Data Download

GPCN-E Sheet metal series instructions
GPCN-E Nut series instructions
