PROJECTOR MOUNT-TTL

PROJECTOR MOUNT

GPCM-B

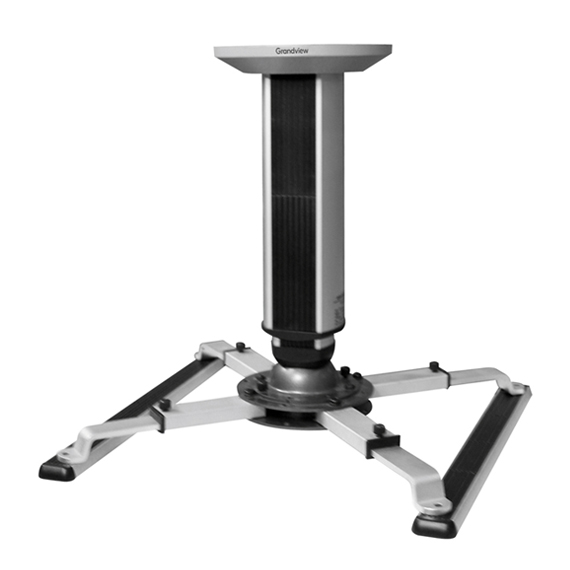

GPCM-B SERIES FIXED CEILING MOUNT

Introduction to Functions

.Wire storage

.Adjustable angle: front and rear direction, tilt forward 30°, backward 3°,

.3° Left and right

.Horizontal rotation: 360°

major function

Product Index

Dispose

Basic control mode

parameter

Product Model

GPCM-B600
GPCM-B500
GPCM-B400
GPCM-B300
GPCM-B200
GPCM-B100

- Overall dimension(D*W*H)(mm)

  275×280×700
- Net weight(kg)

  2.62
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  700-875
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  3.14
- Package size (D*W*H)

  655x240x65
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ280~φ255
- Optional control mode
- Overall dimension(D*W*H)(mm)

  275x280x600
- Net weight(kg)

  2.44
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  600-775
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.92
- Package size (D*W*H)

  565x240x65
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ280~φ255
- Optional control mode
- Overall dimension(D*W*H)(mm)

  275×280×500
- Net weight(kg)

  2.38
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  500-675
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.85
- Package size (D*W*H)

  465x240x65
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ280~φ255
- Optional control mode
- Overall dimension(D*W*H)(mm)

  275×280×400
- Net weight(kg)

  2.1
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  400-575
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.77
- Package size (D*W*H)

  380x225x150
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ280~φ255
- Optional control mode
- Overall dimension(D*W*H)(mm)

  275×280×300
- Net weight(kg)

  1.82
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  300-375
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.5
- Package size (D*W*H)

  380x225x150
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ280~φ255
- Optional control mode
- Overall dimension(D*W*H)(mm)

  275×280×170
- Net weight(kg)

  1.48
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  175
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.16
- Package size (D*W*H)

  380x225x150
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ280~φ255
- Optional control mode
