GPAD/AC 58 Series Telescopic Projector Lift

Introduction to Functions

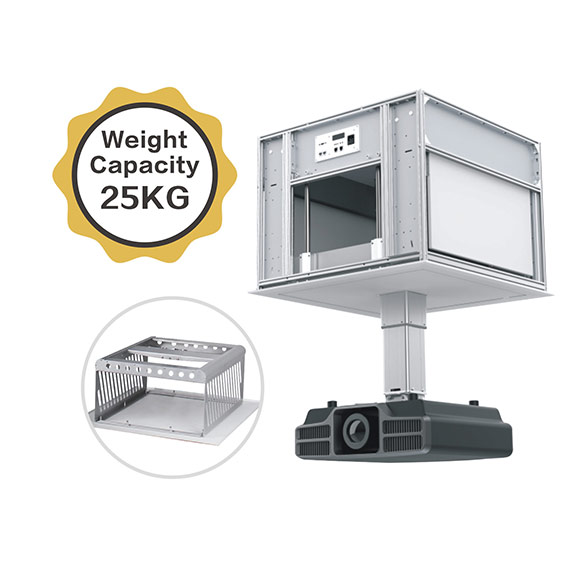

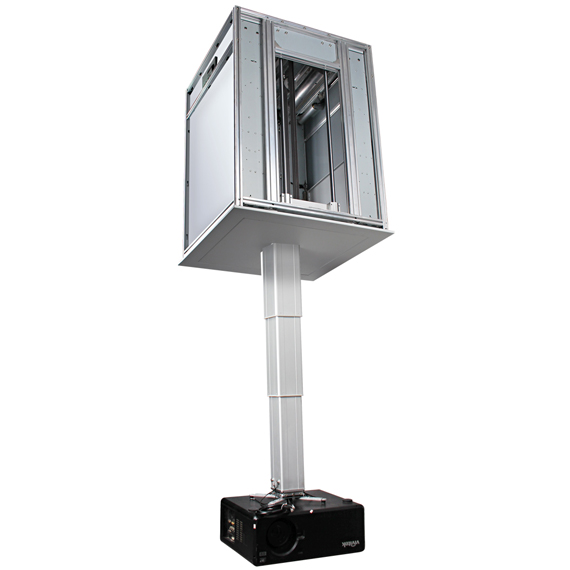

GPAD58 series telescopic pole projector ceiling lifter, suitable for small and medium commercial and home projectors. It has a single-pole telescopic, simple lines, and is versatile with various decoration styles. The built-in electric double door is hidden in the ceiling after closing.

major function

.The guide column is lifted and lowered, the operation is stable, the built-in force precision screw connection, and the multi-point lifting.

.The patent for wire collection can be lifted up and down without load.

.Multiple protection anti-fall device, fully enclosed aluminum alloy frame structure, strong and durable; industrial long-running motor.

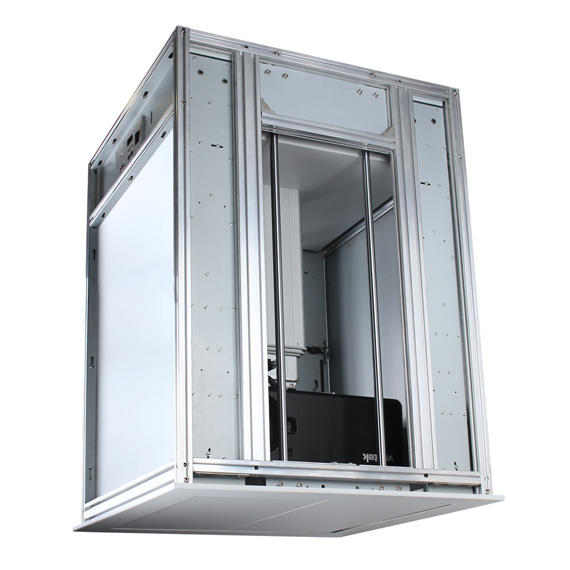

.Multi-section alloy sqaluminumuare tube, double-opening inner door; stable operation; high-precision encoder, positioning accuracy ≤ 1mm.

.Built-in cables: projector power cable × 1, HDMI2.0 × 1, Category 6 network cable × 2; (other requirements can be customized).

.Projector universal mounting claw, multi-angle adjustable.

Location method: RF positioning and 485 positioning.

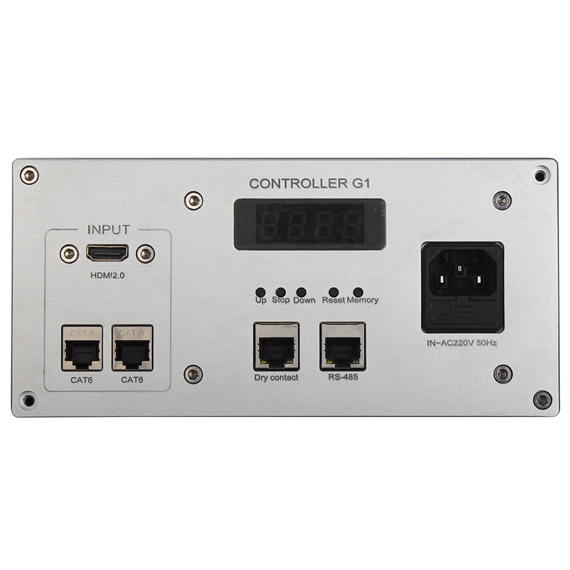

.Control mode: RF, weak current dry contact and RS485 code.

*The size of the installed projector is the recommended size, which is for reference only, and the actual size shall prevail.

Product Index

Dispose

Basic control mode

parameter

Product Model

GPAD/AC 5850 (Ⅱ)
GPAD/AC 5845 (Ⅱ)
GPAD/AC 5840 (Ⅱ)
GPAD/AC 5835
GPAD/AC 5830
GPAD/AC 5825
GPAD/AC 5820
GPAD/AC 5815
GPAD/AC 5810
GPAD/AC 5805

- Overall dimension(D*W*H)(mm)

  760x760x1622
- Net weight(kg)

  141
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  5000
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  453x740
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  145
- Package size (D*W*H)

  880x880x1772
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  760x760x1522
- Net weight(kg)

  133
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  4500
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  453x740
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  148
- Package size (D*W*H)

  880x880x1672
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  760x760x1422
- Net weight(kg)

  125
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  4000
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  453x740
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  140
- Package size (D*W*H)

  880x880x1572
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  760×760×1462.5
- Net weight(kg)

  117
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  3500
- Lifting accuracy(mm)

  ＜2 m
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  740x453
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  132
- Package size (D*W*H)

  880x880x1612.5
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  760×760×1337.5
- Net weight(kg)

  109
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  3000
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  453x740
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  124
- Package size (D*W*H)

  880x880x1487.5
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  760×760×1212.5
- Net weight(kg)

  101
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  2500
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  453x740
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  116
- Package size (D*W*H)

  880x880x1362.5
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  760×760×1087.5
- Net weight(kg)

  93
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  2000
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  453x740
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  108
- Package size (D*W*H)

  880x880x1237.5
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  760×760×962.5
- Net weight(kg)

  85
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  1500
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  453x740
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  100
- Package size (D*W*H)

  880x880x1112.5
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  760×760×837.5
- Net weight(kg)

  80
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  1000
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  453x740
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  95
- Package size (D*W*H)

  880x880x987.5
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  760×760×712.5
- Net weight(kg)

  60
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  580*550*260
- Maximum load(kg)

  25
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  500
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  453x740
- Door frame shape(mm)

  800x800
- Ceiling openings(mm)

  775x775
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  75
- Package size (D*W*H)

  880x880x862.5
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
