CABLE MANAGER-TTL

CABLE MANAGER

GSPC 20

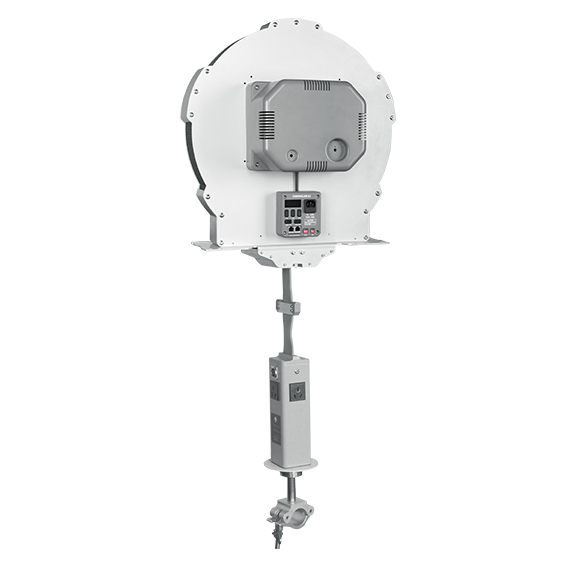

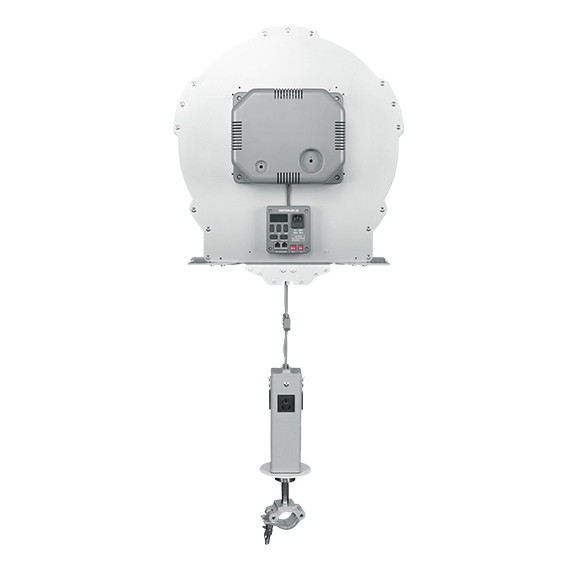

GSPC SERIES MOTORIZED CABLE MANAGER

Introduction to Functions

major function

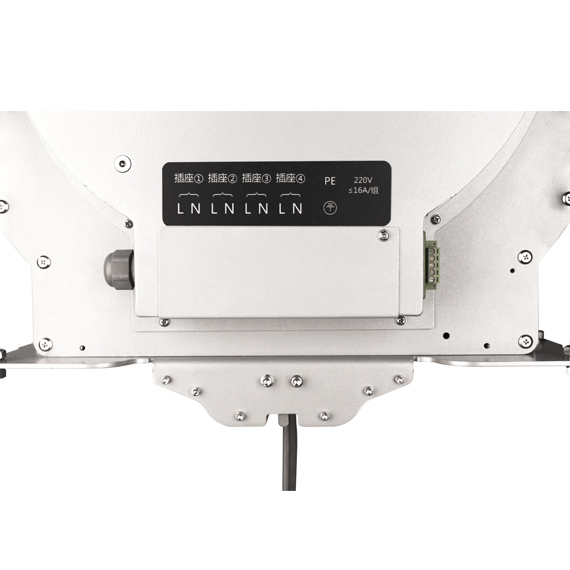

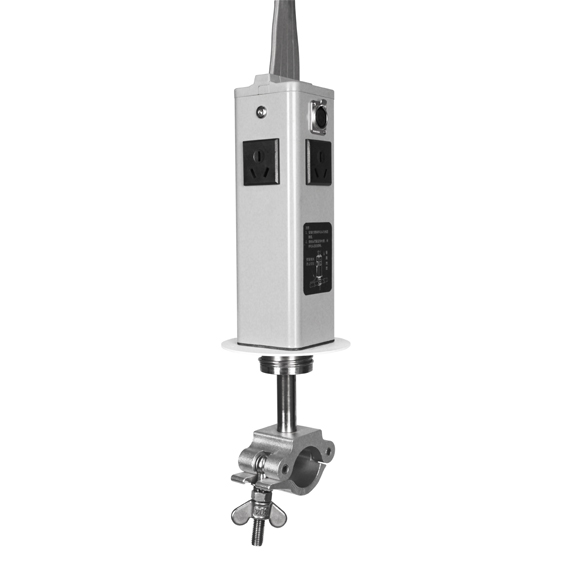

-Wire take-up cable interface: 4 16A sockets (four groups of 2.5 square power cords are customized by the customer) 2 5-pin DMx512 interfaces.

-RS485 - Control method: weak point dry contact, RS485

- Standard with upper and lower limit: prevent overtravel

Maximum cable tension: 5KG

-Standard built-in optocoupler sensor: stroke positioning can be set arbitrarily

Optional accessories: wireless power manager key, which can be used for various emergency braking

- Reel slip device: The unique patented reel slip device ensures that the cable will not be broken by external force

-Mechanical double limit switch: Mechanical double limit switch to prevent overtravel

Product Index

Dispose

Basic control mode

parameter

Product Model

GSPC 20

- Overall dimension(D*W*H)(mm)

  542x295x1032.8
- Net weight(kg)

  50
- Maximum load(kg)

  5
- Rated power(w)

  90
- Maximum telescopic stroke(mm)

  20000
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)

  φ175
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  59
- Package size (D*W*H)

  610x865x440
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
