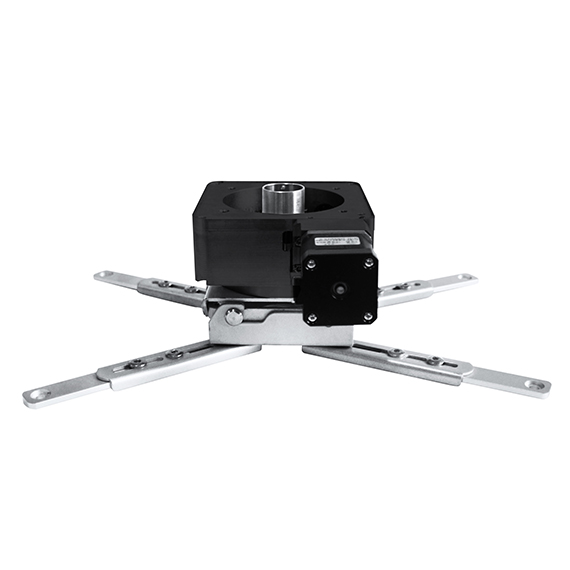

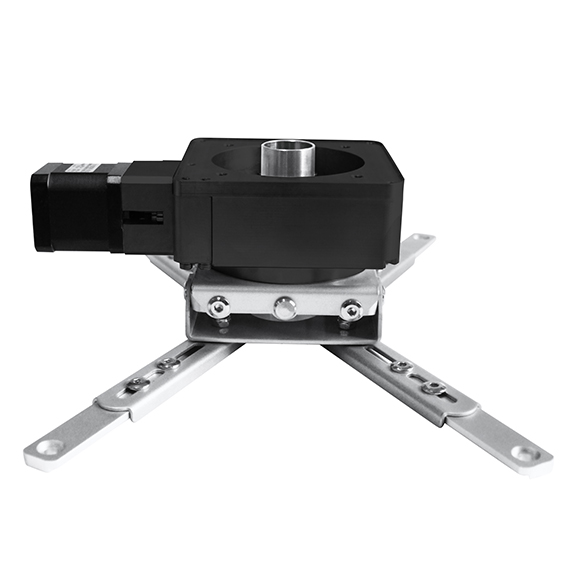

GAMR projector rotating pan tilt

Introduction to Functions

GAMR projector rotating pan tilt can be adapted to all G1 products except gpad76

The rotating pan tilt of gamr projector is specially designed for the application scenario of projection on four sides by a single projector. The initial point, 90 °, 180 ° and 270 ° are preset, and the angle can be adjusted by inching.


major function

1、 The stepper motor can be used to preset four levels of positioning settings

2、 Industrial grade cross roller bearing is adopted to ensure radial level without virtual position

3、 High precision six stage grinding worm gear and worm are adopted, which can run without shaking

4、 Rotation angle: 0-270 degrees

5、 Maximum load: 40kg

6、 Rotation accuracy: < 0.01 degree

7、 Control mode: wireless remote control, RS485 control


Product Index
Dispose
Basic control mode
parameter
Product Model
  • GAMR
    • Overall dimension(D*W*H)(mm)
      177x186.5x57mm
    • Net weight(kg)
      2.4
    • Maximum load(kg)
      40
    • Rated power(w)
      AC220V/50Hz
    • Maximum telescopic stroke(mm)
    • Lifting accuracy(mm)
      旋转角度<0.01°
    • noise(dB)
    • Voltage(v)
    • jib attachment(mm)
    • Door frame shape(mm)
    • Ceiling openings(mm)
    • Ceiling height(mm)
    • Angle adjustment(Upper/Lower/Level)
      1°/8°/4°/4°
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
      无线遥控/面板按键
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
    • Package size (D*W*H)
      150x250x100mm
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
Installation Control Video
Data Download
  • Three views of gamr
