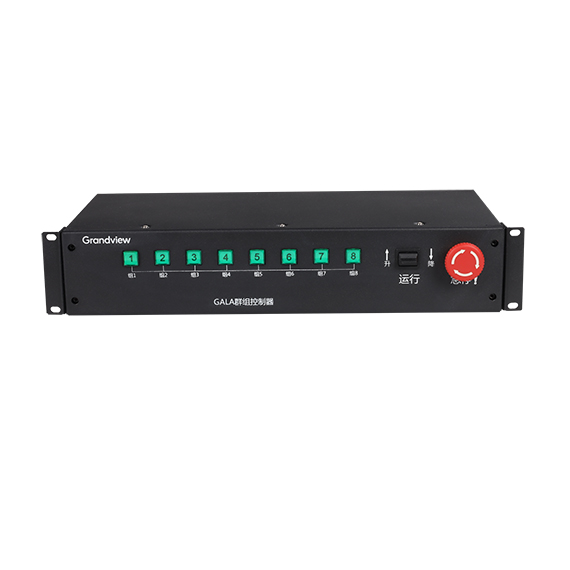

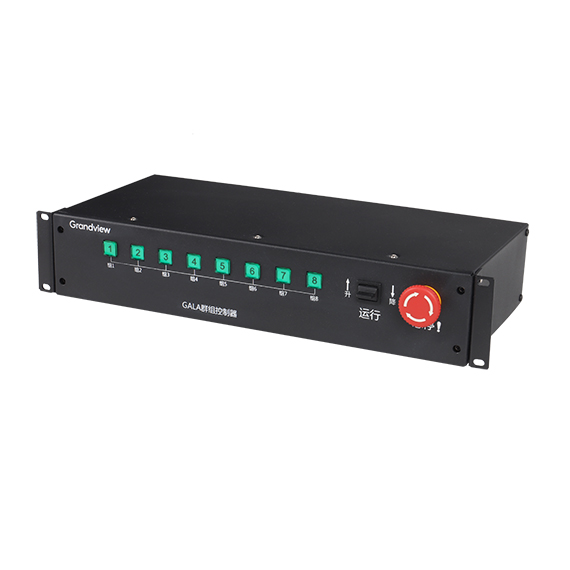

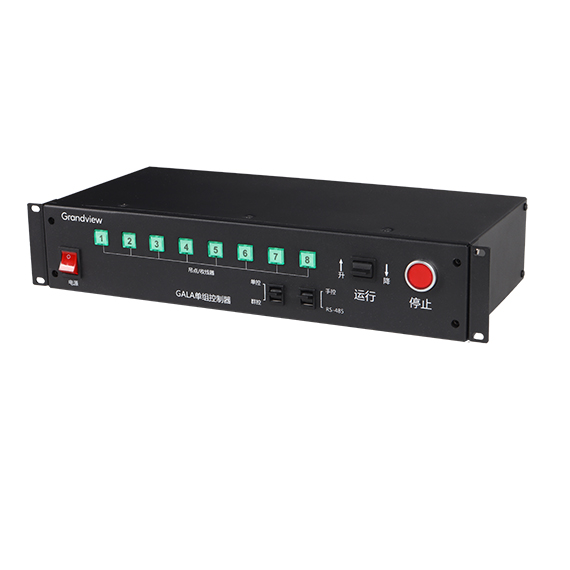

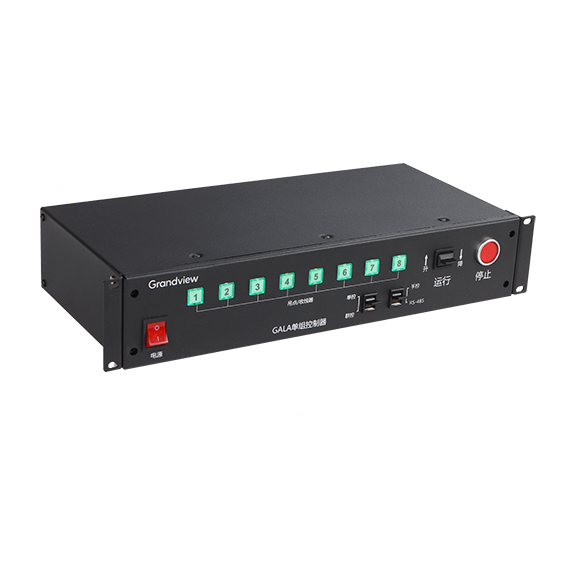

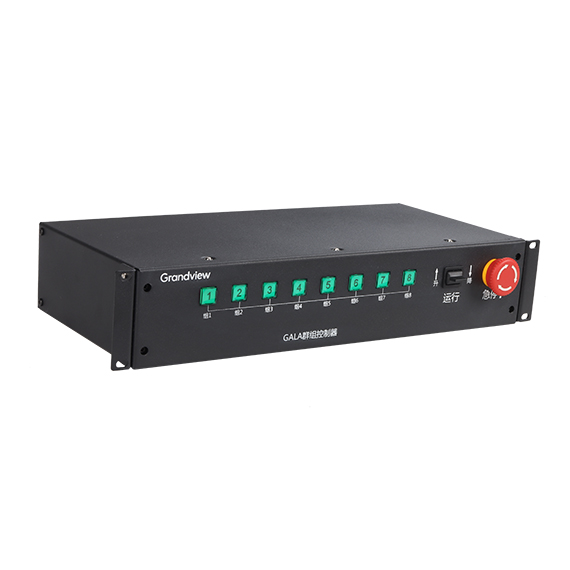

Gala matrix control system is operated by group control box, group control box, LVC lifting point and take-up device. It can realize the flexible matching use of LVC lifting point or simple electric hoist in the existing market with the take-up of our company, and realize easy switching of single or group lifting action. Provide multi port access to central control system. The whole set of equipment is low-voltage control and flexibly installed in the central control cabinet.

·Each group control box supports 6 24 V + 2 dry contact outputs. (LVC box)

·Each group control box supports 8 dry contact outputs

·Each group control box can support low voltage control, weak current dry contact output, RS-485 input and weak current dry contact input.

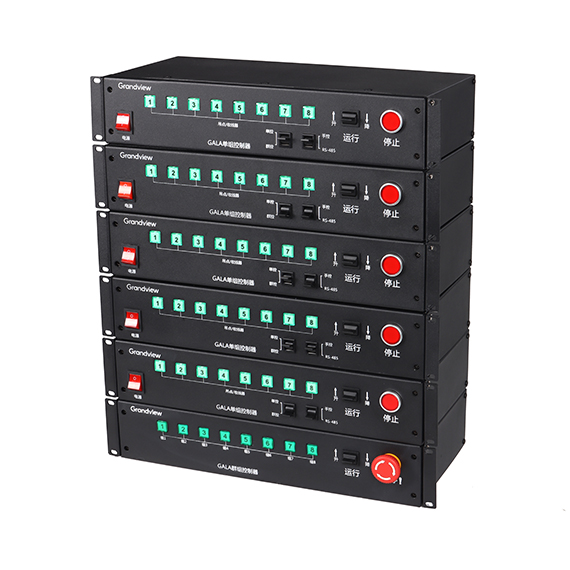

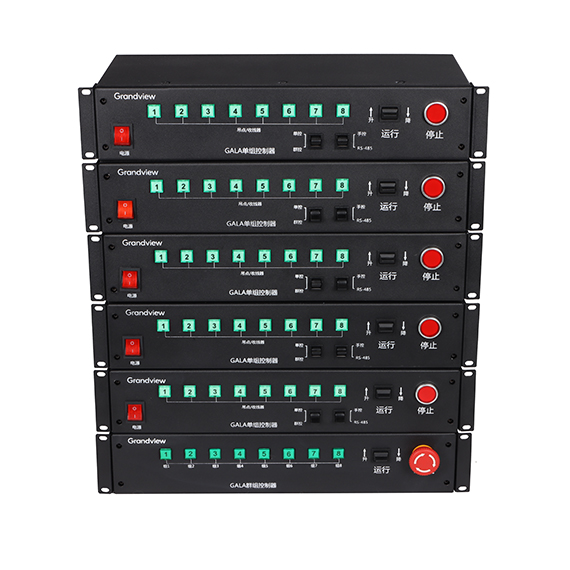

·The group control box can realize single or whole group lifting control by physical keys. Each group control box supports 8 group control boxes

·The group control box can realize the simultaneous operation of up to 64 lifting points

·It can realize time positioning, and it can support the lifting point with low voltage control in the market or our company (3-phase 380V power supply, 24 / 36V control). The supporting lifting points have physical upper and lower limits

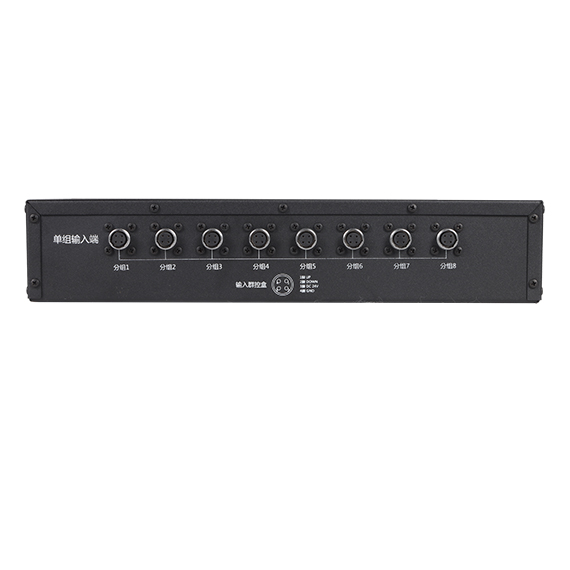

·Group control box, group control box can be equipped with dry contact, RS485, RF input

·(please refer to the drawing for size parameters)
