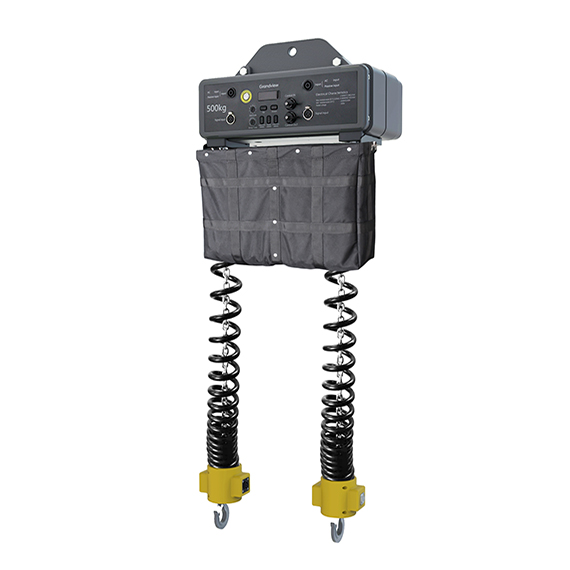

D1 Series GCRT

Integrated transmission double chain hoist

Introduction to Functions

Professional hanging and rolling line array speakers, flat panel displays, advertising light boxes and other heavy-duty audio-visual equipment, with a variety of audio and video transmission signal lines and high-power power lines, wireless remote control, with RS485 central control interface, double-chain synchronous hoisting structure Anti-rotation, multiple limit adjustment.



major function

Installable cables: HDMI, Category 6 network cable, AV audio cable, speaker cable, 220V power cable;

Gear (transmission): Precise helical helical gear transmission, with two-way chain output mechanism, the operating noise under full load is as low as 68 decibels;

A variety of control methods: weak point dry contact, RS485, wireless remote control;

Braking system: heavy-duty DC electromagnetic brake, safe and durable;

Encoder: The built-in encoder can set the ideal stroke at will;



Product Index
Dispose
Basic control mode
parameter
Product Model
  • GCRT-D5012
    • Overall dimension(D*W*H)(mm)
      247x450x515
    • Net weight(kg)
      42.8
    • Maximum load(kg)
      500
    • Rated power(w)
      300
    • Maximum telescopic stroke(mm)
      12000
    • Lifting accuracy(mm)
      <1mm
    • noise(dB)
      ≤55dB
    • Voltage(v)
      220V
    • jib attachment(mm)
      A:- B:472x136
    • Door frame shape(mm)
    • Ceiling openings(mm)
      205
    • Ceiling height(mm)
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
    • Package size (D*W*H)
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
