PROJECTOR MOUNT-TTL

PROJECTOR MOUNT

GPCM-C

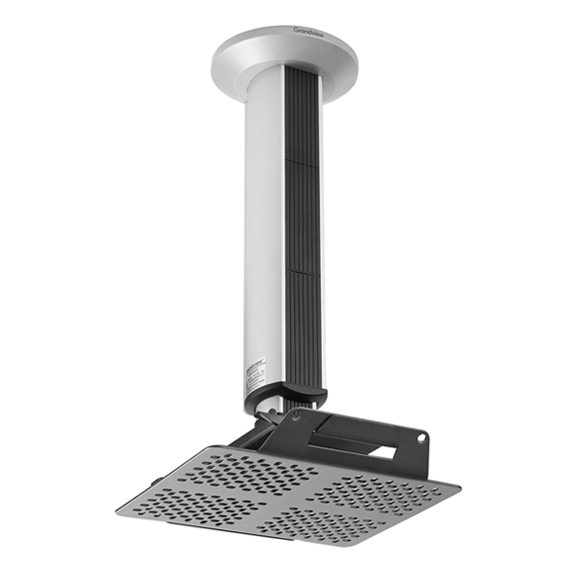

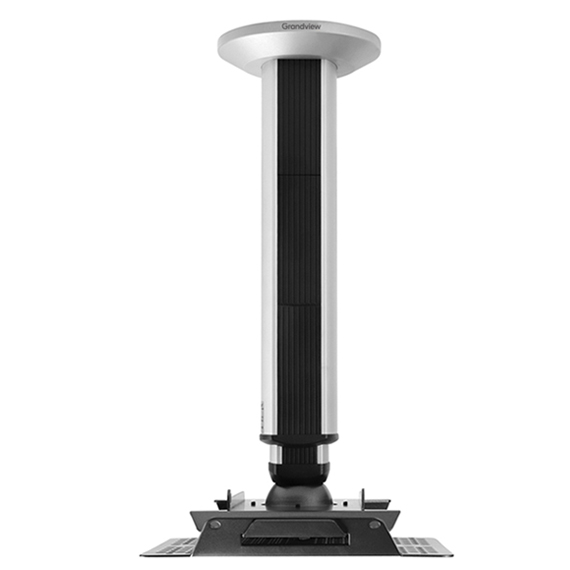

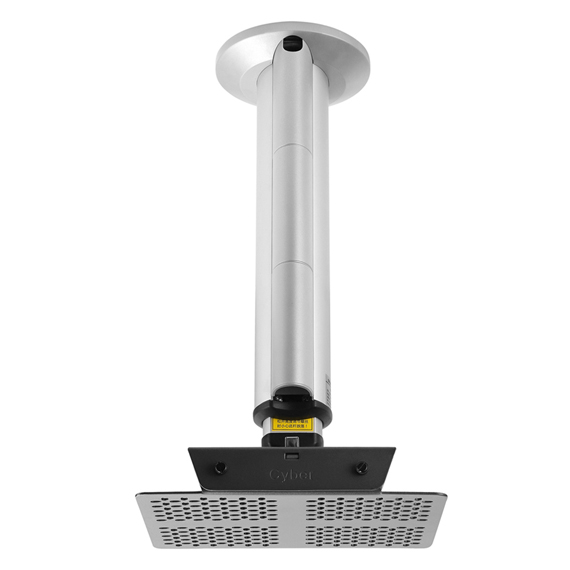

GPCM-C SERIES FIXED CEILING MOUNT

Introduction to Functions

.Wire storage

.Retractable pole

.Adjustable angle: front and rear direction, tilt forward 30°, backward 3°,

.3°Left and right

.Horizontal rotation: 360°

major function

Product Index

Dispose

Basic control mode

parameter

Product Model

GPCM-C600
GPCM-C500
GPCM-C400
GPCM-C300
GPCM-C200
GPCM-C100

- Overall dimension(D*W*H)(mm)

  225×215×700
- Net weight(kg)

  3.21
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  700-880
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  3.71
- Package size (D*W*H)

  655x240x65
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ205~φ160
- Optional control mode
- Overall dimension(D*W*H)(mm)

  225×215×600
- Net weight(kg)

  3.03
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  600-780
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  3.5
- Package size (D*W*H)

  565x240x65
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ205~φ160
- Optional control mode
- Overall dimension(D*W*H)(mm)

  225×215×500
- Net weight(kg)

  2.97
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  500-680
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  3.42
- Package size (D*W*H)

  465x240x65
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ205~φ160
- Optional control mode
- Overall dimension(D*W*H)(mm)

  225×215×400
- Net weight(kg)

  2.68
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  400-580
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  3.34
- Package size (D*W*H)

  385x260x140
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ205~φ160
- Optional control mode
- Overall dimension(D*W*H)(mm)

  225×215×300
- Net weight(kg)

  2.4
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  300-380
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  3.06
- Package size (D*W*H)

  385x260x140
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ205~φ160
- Optional control mode
- Overall dimension(D*W*H)(mm)

  225×215×175
- Net weight(kg)

  2.07
- Maximum load(kg)

  25
- Rated power(w)
- Maximum telescopic stroke(mm)

  175
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  2.73
- Package size (D*W*H)

  385x260x140
- Wireless Control(Y/N)

  30 3 3 3
- Suitable hole spacing of projector (mm)

  φ205~φ160
- Optional control mode

Installation Control Video

Data Download

GPCM-C instructions
