PROJECTOR LIFTS-TTL

PROJECTOR LIFTS

GPSC Series

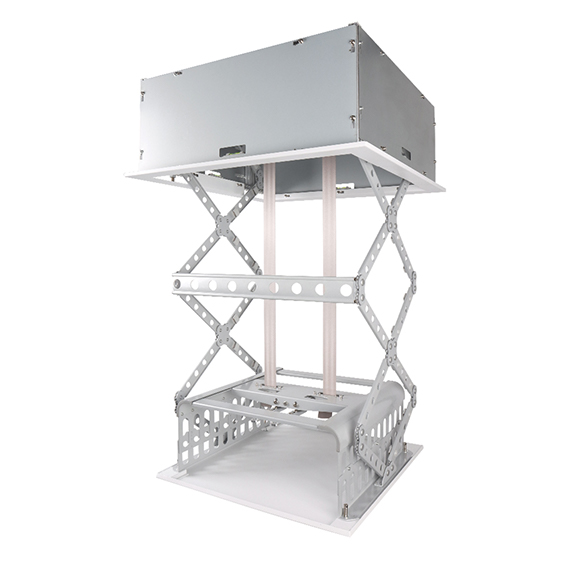

GPSC Series Motorized Projector Lift

Introduction to Functions

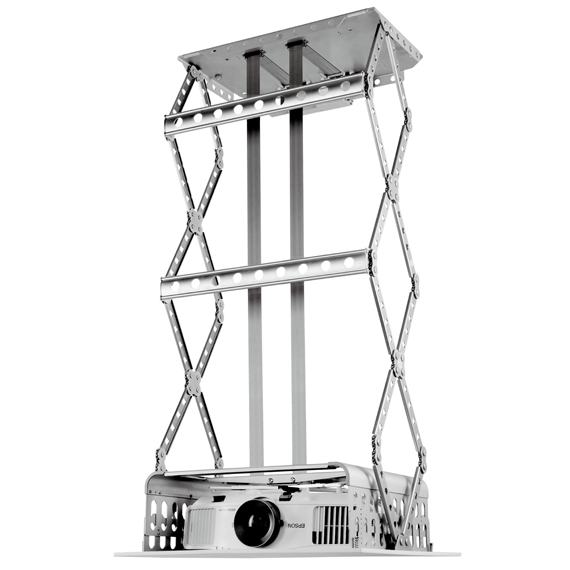

X-arm projector ultra-thin electric elevator, for the new generation of projector electric elevator products, in line with international standards.Special use of small and medium-sized projectors and installation space of small environment design, such as: meeting room, training room, multimedia classroom and other places

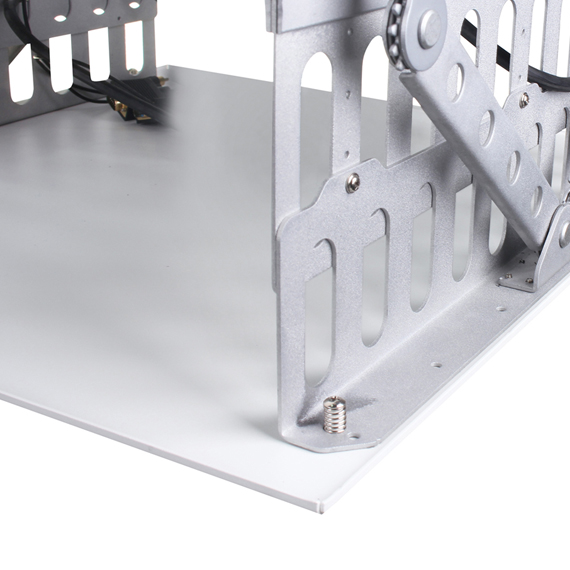

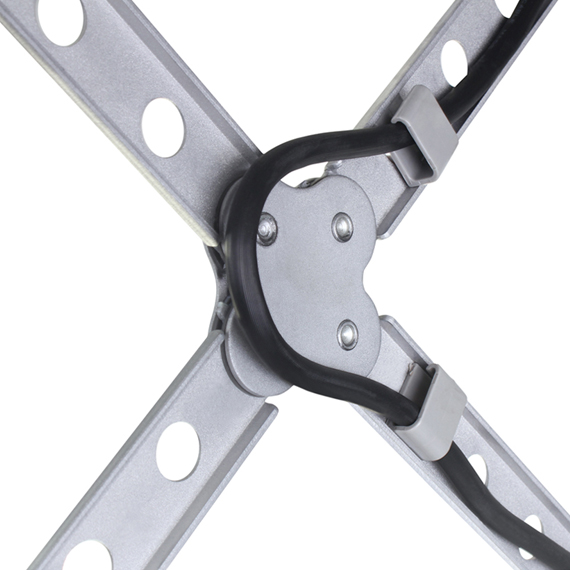

The elevator USES x-type composite mechanical arm to lift and lower, stable operation, electronic travel positioning, one-key setting, simple operation;The hidden installation design can be integrated with the ceiling after being closed.Long-term service life design, easy maintenance and overload protection design to prevent extreme overload, effectively avoid the danger caused by extreme overload

the size of the projector is the recommended size for reference only. The actual size shall prevail.

major function

Product Index

Dispose

Basic control mode

parameter

Product Model

GPSC 5006
GPSC 5010
GPSC 5015
GPSC 5005B
GPSC 5010B
GPSC 5015B

- Overall dimension(D*W*H)(mm)

  600×600×160
- Net weight(kg)

  17
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  480*480*135
- Maximum load(kg)

  15
- Rated power(w)

  145
- Maximum telescopic stroke(mm)

  600
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  360x220
- Door frame shape(mm)

  600x600
- Ceiling openings(mm)

  590x590
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  21
- Package size (D*W*H)

  620x620X200
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  600×600×215
- Net weight(kg)

  20
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  480*480*180
- Maximum load(kg)

  12
- Rated power(w)

  145
- Maximum telescopic stroke(mm)

  1000
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  360x220
- Door frame shape(mm)

  600x600
- Ceiling openings(mm)

  590x590
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  24
- Package size (D*W*H)

  620x620X250
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  600x600x260
- Net weight(kg)

  23
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  480*480*180
- Maximum load(kg)

  10
- Rated power(w)

  145
- Maximum telescopic stroke(mm)

  1500
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  360x220
- Door frame shape(mm)

  600x600
- Ceiling openings(mm)

  590x590
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  27
- Package size (D*W*H)

  620x620X300
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  580×580×160
- Net weight(kg)

  23.8
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  480*440*135
- Maximum load(kg)

  15
- Rated power(w)

  145
- Maximum telescopic stroke(mm)

  1500
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  360x220
- Door frame shape(mm)

  600x600
- Ceiling openings(mm)

  590x590
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  26
- Package size (D*W*H)

  640x650x340
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  580×580×250
- Net weight(kg)

  26.2
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  480*440*180
- Maximum load(kg)

  12
- Rated power(w)

  145
- Maximum telescopic stroke(mm)

  1000
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  518x518
- Door frame shape(mm)

  630x630
- Ceiling openings(mm)

  600x600
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  28.4
- Package size (D*W*H)

  640x650x340
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  580×580×340
- Net weight(kg)

  28.6
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  480*440*180
- Maximum load(kg)

  10
- Rated power(w)

  145
- Maximum telescopic stroke(mm)

  1500
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  360x220
- Door frame shape(mm)

  630x630
- Ceiling openings(mm)

  600x600
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  31
- Package size (D*W*H)

  640x665X440
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode

Installation Control Video

Data Download

GPSC5006/5010/5015 instruction manual
GPSC5006B/5010B/5015B instruction manual
