GPID/IC 64 Series Ironhand Projector Lift

Introduction to Functions

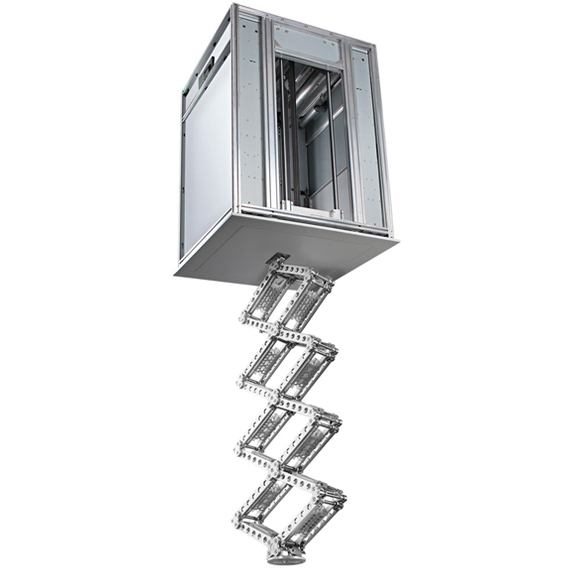

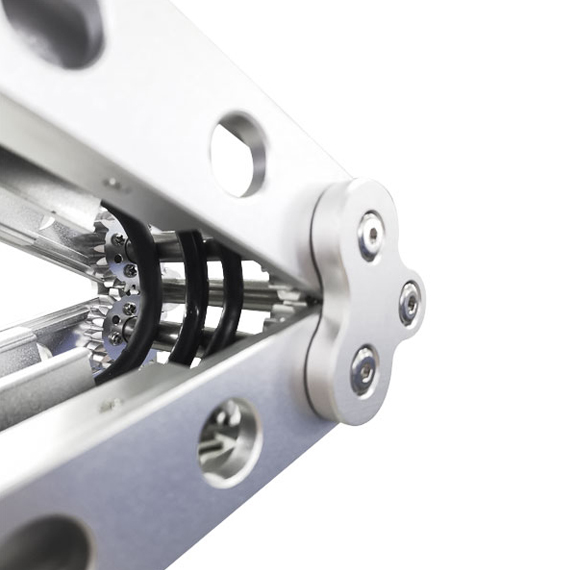

GPID64 series mechanical arm type electric elevator, projector adapter various commercial type projector, with various types of decorate a style to joker, high strength aluminum alloy mechanical arm, stretching Angle 118 ° gear wheels lock, without falling risk; Suitable for low ceiling and high travel; Built-in electric double door; The power supply and video signal wire are self-fastened along the fish-cage type wire clip on the side of the arm, and are unfolded synchronously with the mechanical arm; High precision optical coupler positioning, positioning accuracy less than 2 mm

the size of the projector is the recommended size for reference only. The actual size shall prevail.


major function

Product Index
Dispose

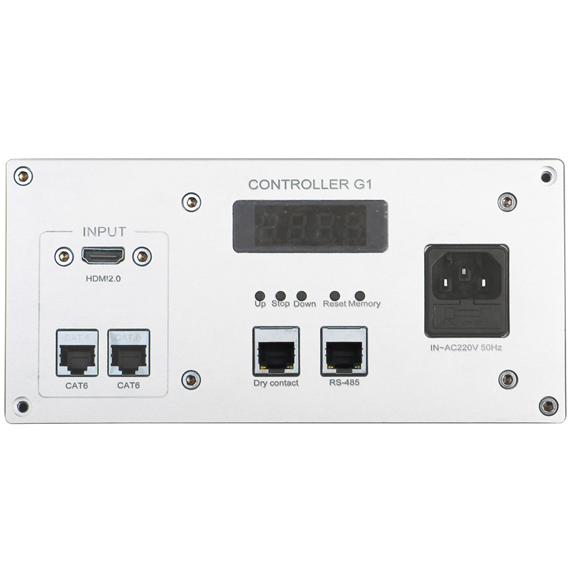

Basic control mode
parameter
Product Model
  • GPID/IC 6450
  • GPID/IC 6545
  • GPID/IC 6440
  • GPID/IC 6435
    • Overall dimension(D*W*H)(mm)
      975×825×1270
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      730*620*280
    • Maximum load(kg)
      40
    • Rated power(w)
      100
    • Maximum telescopic stroke(mm)
      5000
    • Lifting accuracy(mm)
      <2 mm
    • noise(dB)
      ≤55dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      480x945
    • Door frame shape(mm)
      867x1015
    • Ceiling openings(mm)
      840x990
    • Ceiling height(mm)
      >1310
    • Angle adjustment(Upper/Lower/Level)
      1/8/4/4
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)

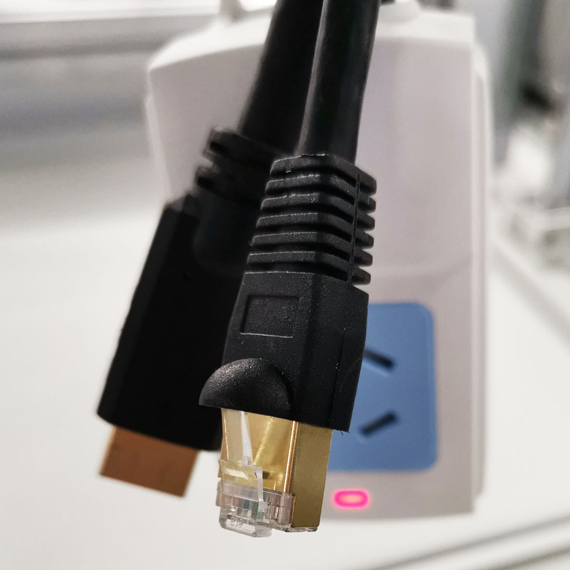

    • CAT6 network cable
      1
    • HDMI 2.0
      1
    • Power cord
      1
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
    • Package size (D*W*H)
      945x1095x1410
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      975×825×1200
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      730*620*280
    • Maximum load(kg)
      40
    • Rated power(w)
      100
    • Maximum telescopic stroke(mm)
      4500
    • Lifting accuracy(mm)
      <2 mm
    • noise(dB)
      ≤55dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      480x945
    • Door frame shape(mm)
      867x1015
    • Ceiling openings(mm)
      840x990
    • Ceiling height(mm)
      >1240
    • Angle adjustment(Upper/Lower/Level)
      1/8/4/4
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
      1
    • HDMI 2.0
      1
    • Power cord
      1
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
    • Package size (D*W*H)
      945x1095x1340
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      975×825×1130
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      730*620*280
    • Maximum load(kg)
      40
    • Rated power(w)
      100
    • Maximum telescopic stroke(mm)
      4000
    • Lifting accuracy(mm)
      <2 mm
    • noise(dB)
      ≤55dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      480x945
    • Door frame shape(mm)
      867x1015
    • Ceiling openings(mm)
      840x990
    • Ceiling height(mm)
      >1170
    • Angle adjustment(Upper/Lower/Level)
      1/8/4/4
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
      1
    • HDMI 2.0
      1
    • Power cord
      1
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
    • Package size (D*W*H)
      945x1095x1270
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      975×825×1060
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      730*620*280
    • Maximum load(kg)
      40
    • Rated power(w)
      100
    • Maximum telescopic stroke(mm)
      3500
    • Lifting accuracy(mm)
      <2 mm
    • noise(dB)
      ≤55dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      480x945
    • Door frame shape(mm)
      867x1015
    • Ceiling openings(mm)
      840x990
    • Ceiling height(mm)
      >1100
    • Angle adjustment(Upper/Lower/Level)
      1/8/4/4
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
      1
    • HDMI 2.0
      1
    • Power cord
      1
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
    • Package size (D*W*H)
      945x1095x1200
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
