PROJECTOR LIFTS

GPCK-ME

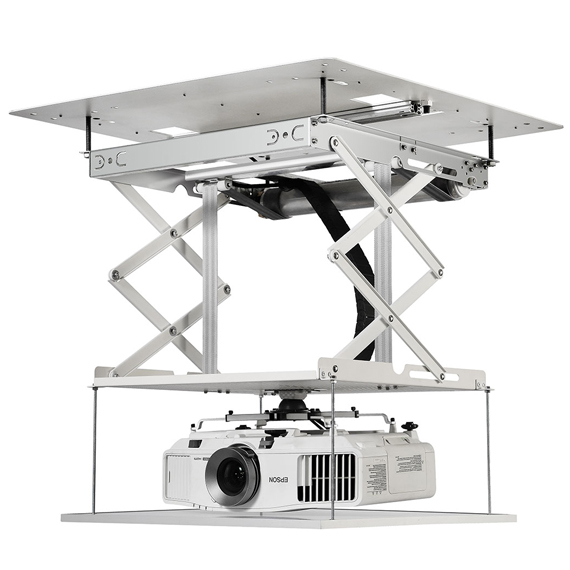

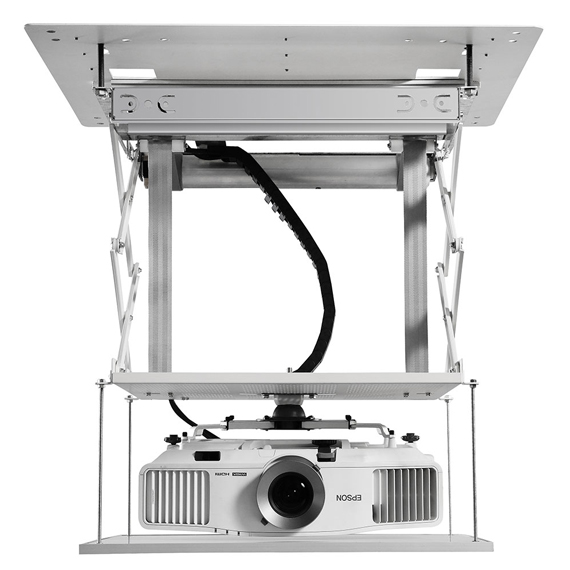

GPCK-ME SERIES MOTORIZED PROJECTOR LIFT

Introduction to Functions

Applicable scene:It is widely used ini various meeting rooms,multimedia classrooms.training rooms and other office places

Smooth running

Low noise(≤60dB)

Precise positioning

Durable

Maximum load 40Kg


major function

Product Index
Dispose
Basic control mode
parameter
Product Model
  • GPCK-ME 500
  • GPCK-ME 1000
  • GPCK-ME 2000
  • GPCK-ME 3000
  • GPCK-ME 4000
  • GPCK-ME 500P
  • GPCK-ME 1000P
  • GPCK-ME 2000P
  • GPCK-ME 3000P

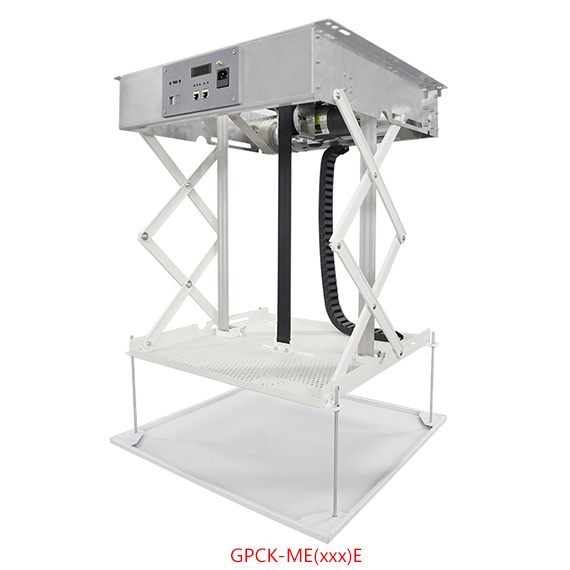

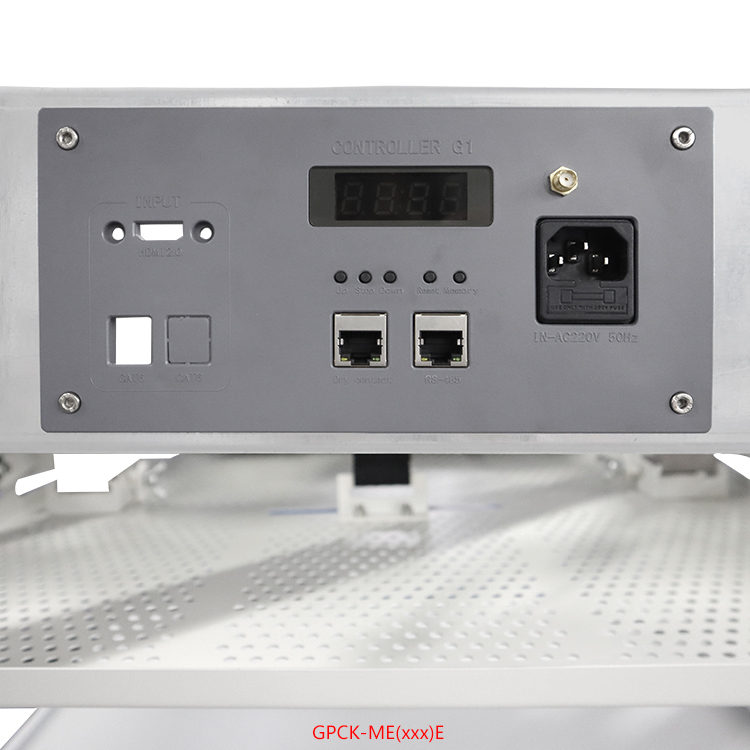

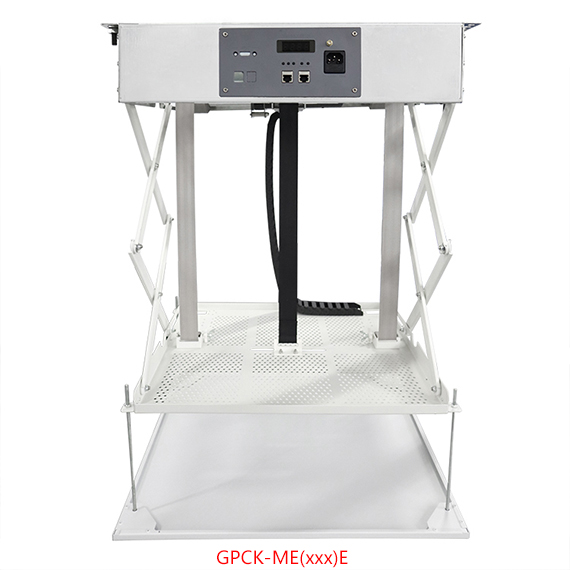

  • GPCK-ME 1000E
  • GPCK-ME 2000E
  • GPCK-ME 3000E
  • GPCK-ME 4000E
    • Overall dimension(D*W*H)(mm)
      590x590x135
    • Net weight(kg)
      15.3
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      460*460*240
    • Maximum load(kg)
      25
    • Rated power(w)
      170
    • Maximum telescopic stroke(mm)
      500
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      600x600
    • Ceiling height(mm)
      435
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      17.7
    • Package size (D*W*H)
      635x635x205
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      590x590x190
    • Net weight(kg)
      17
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      460*460*240
    • Maximum load(kg)
      25
    • Rated power(w)
      170
    • Maximum telescopic stroke(mm)
      1000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      600x600
    • Ceiling height(mm)
      490
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      19.2
    • Package size (D*W*H)
      635x635x270
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      590x590×300
    • Net weight(kg)
      19
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      460*460*240
    • Maximum load(kg)
      20
    • Rated power(w)
      170
    • Maximum telescopic stroke(mm)
      2000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      600x600
    • Ceiling height(mm)
      600
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      21
    • Package size (D*W*H)
      635x635x430
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      590x590×410
    • Net weight(kg)
      25
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      460*460*240
    • Maximum load(kg)
      15
    • Rated power(w)
      170
    • Maximum telescopic stroke(mm)
      3000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      600x600
    • Ceiling height(mm)
      710
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      30
    • Package size (D*W*H)
      635x635x480
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      590x590×520
    • Net weight(kg)
      32
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      460*460*240
    • Maximum load(kg)
      15
    • Rated power(w)
      170
    • Maximum telescopic stroke(mm)
      4000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      600x600
    • Ceiling height(mm)
      820
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      38
    • Package size (D*W*H)
      635x635x580
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      695x695x135
    • Net weight(kg)
      17.3
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      600*600*240
    • Maximum load(kg)
      25
    • Rated power(w)
      170
    • Maximum telescopic stroke(mm)
      500
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      705x705
    • Ceiling height(mm)
      435
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      20.7
    • Package size (D*W*H)
      720x720x215
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      695x695x190
    • Net weight(kg)
      19
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      600*600*240
    • Maximum load(kg)
      25
    • Rated power(w)
      170
    • Maximum telescopic stroke(mm)
      1000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      705x705
    • Ceiling height(mm)
      490
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      22.2
    • Package size (D*W*H)
      720x720x280
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      695x695x300
    • Net weight(kg)
      21
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      600*600*240
    • Maximum load(kg)
      25
    • Rated power(w)
      170
    • Maximum telescopic stroke(mm)
      2000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      705x705
    • Ceiling height(mm)
      600
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      24
    • Package size (D*W*H)
      720x720x440
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      695x695x510
    • Net weight(kg)
      27
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      600*600*240
    • Maximum load(kg)
      25
    • Rated power(w)
      170
    • Maximum telescopic stroke(mm)
      3000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      705x705
    • Ceiling height(mm)
      710
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
    • Wireless remote control(Y/N)
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
    • Total weight of package + product (kg)
      33
    • Package size (D*W*H)
      720x720x490
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      695x695x250
    • Net weight(kg)
      27
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      600*600*240
    • Maximum load(kg)
      40
    • Rated power(w)
      60
    • Maximum telescopic stroke(mm)
      1000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      705x705
    • Ceiling height(mm)
      550
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
      √
    • Wireless remote control(Y/N)
      √
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
      √
    • Total weight of package + product (kg)
      29.4
    • Package size (D*W*H)
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      695x695x360
    • Net weight(kg)
      31
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      600*600*240
    • Maximum load(kg)
      40
    • Rated power(w)
      60
    • Maximum telescopic stroke(mm)
      2000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      705x705
    • Ceiling height(mm)
      660
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
      √
    • Wireless remote control(Y/N)
      √
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
      √
    • Total weight of package + product (kg)
      33.4
    • Package size (D*W*H)
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      695x695x470
    • Net weight(kg)
      35
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      600*600*240
    • Maximum load(kg)
      40
    • Rated power(w)
      60
    • Maximum telescopic stroke(mm)
      3000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      705x705
    • Ceiling height(mm)
      770
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
      √
    • Wireless remote control(Y/N)
      √
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
      √
    • Total weight of package + product (kg)
      39.4
    • Package size (D*W*H)
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
    • Overall dimension(D*W*H)(mm)
      695X695X580
    • Net weight(kg)
      39
    • Maximum size for projector(D*W*H)(Line + lens)(mm)
      600*600*240
    • Maximum load(kg)
      40
    • Rated power(w)
      60
    • Maximum telescopic stroke(mm)
      4000
    • Lifting accuracy(mm)
    • noise(dB)
      ≤60dB
    • Voltage(v)
      220V/110V
    • jib attachment(mm)
      550x520
    • Door frame shape(mm)
    • Ceiling openings(mm)
      705x705
    • Ceiling height(mm)
      880
    • Angle adjustment(Upper/Lower/Level)
    • Weakness Dry Contact(Y/N)
      √
    • Wireless remote control(Y/N)
      √
    • CAT6 network cable
    • HDMI 2.0
    • Power cord
    • 485 Control (Y/N)
      √
    • Total weight of package + product (kg)
      43.4
    • Package size (D*W*H)
    • Wireless Control(Y/N)
    • Suitable hole spacing of projector (mm)
    • Optional control mode
Installation Control Video
Data Download

  • GPCK-ME(xxx) series three views

  • GPCK-ME(xxx)P series three views

  • GPCK-ME(xxx)E series three views

  • GPCK-ME(xxx) instruction manual

  • GPCK-ME(xxx)P instruction manual

  • GPCK-ME(xxx)E instruction manual

+020 84899499 contact Us
© 2019 Guangzhou Grandview Innovation Technology Co., Ltd. All rights reserved 粤ICP备19100640号 All rights reserved

粤公网安备 44011302002533号
