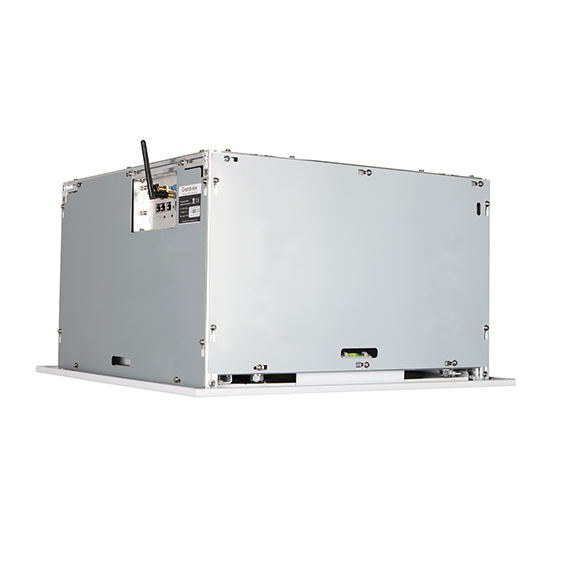

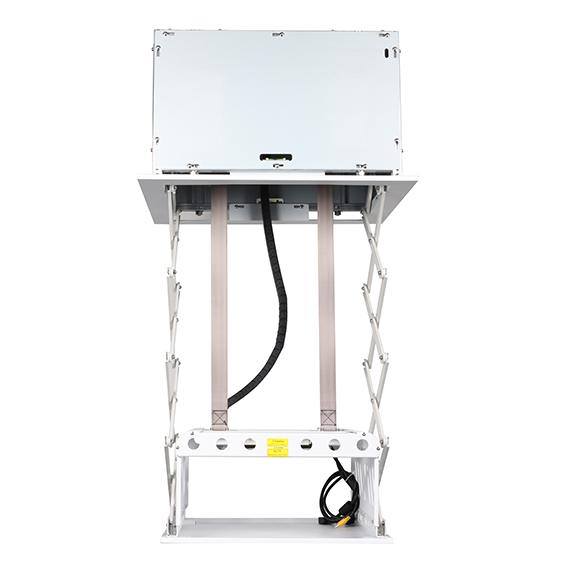

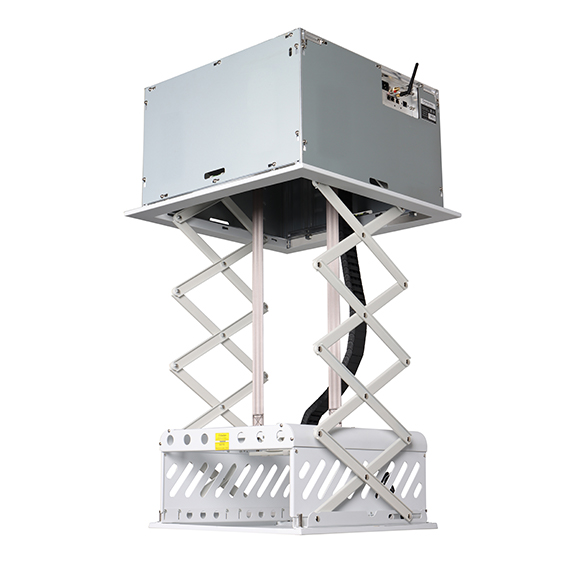

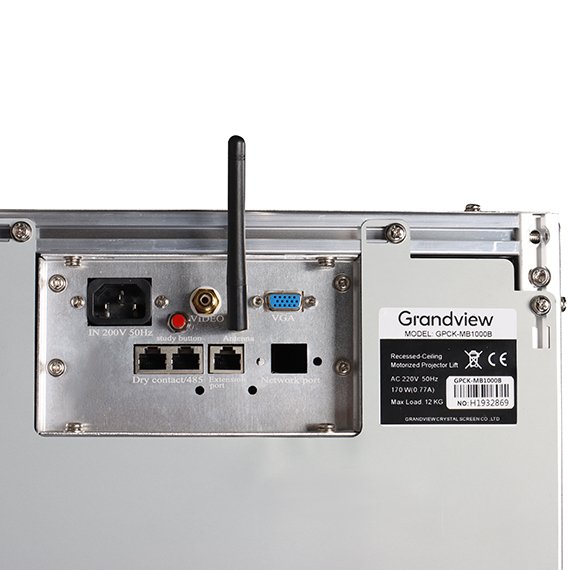

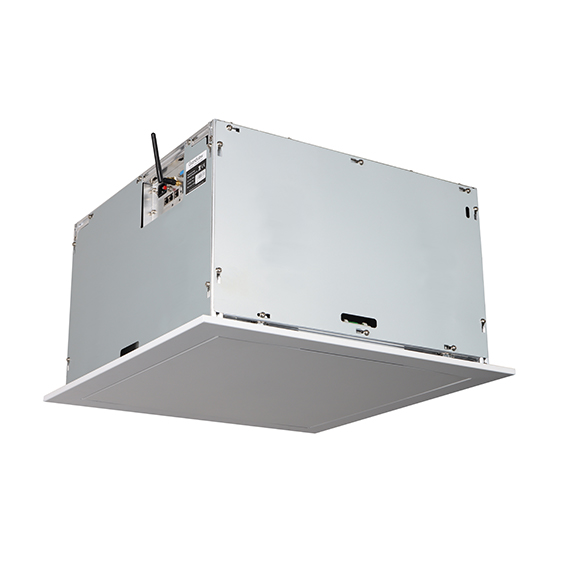

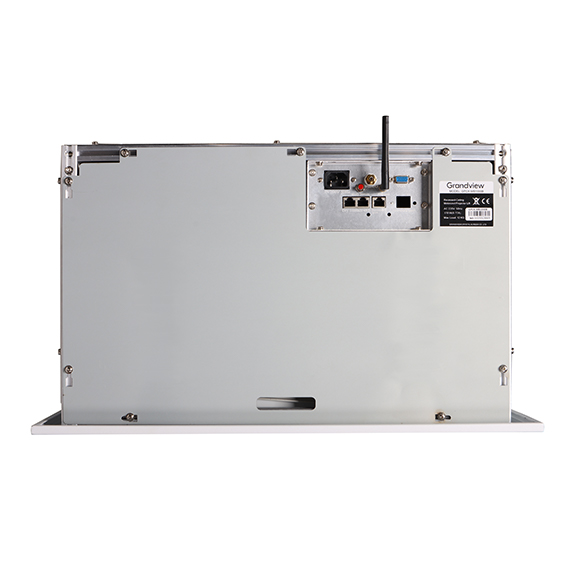

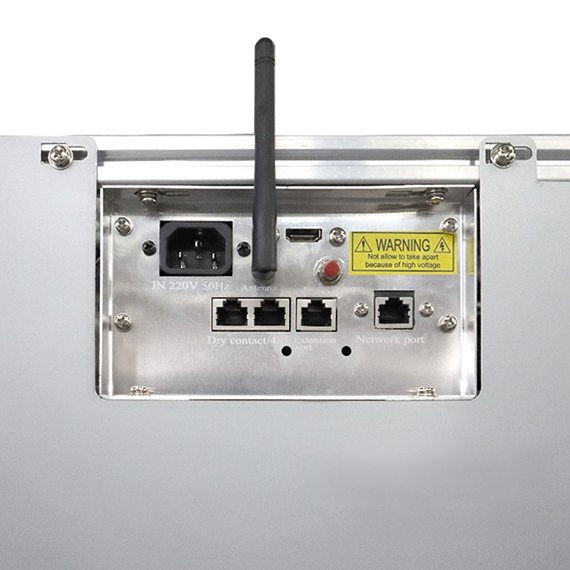

GPCK-MB SERIES MOTORIZED PROJECTOR LIFT

Introduction to Functions

GPCK-MB series uses a custom high-torque tubular motor,fully enclosed and dust-proof design,featuring electronic precision positioning of desired drop height,equipped with wireless remote control and intelligent wall control switch;with a projector mounting foot,it can be independently tilted horizontally to fit most projector mounting holes.

Smooth running

Low noise(≤45db)

Precise positioning

Durable

The maximum load can be 12Kg

Power: 170W

Voltage: 220v/50Hz or 110v/60Hz

major function

Product Index

Dispose

Basic control mode

parameter

Product Model

GPCK-MB1000B

- Overall dimension(D*W*H)(mm)

  541.6*541.6*342
- Net weight(kg)

  28
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  425*365*150
- Maximum load(kg)

  12
- Rated power(w)

  170
- Maximum telescopic stroke(mm)

  1000
- Lifting accuracy(mm)
- noise(dB)

  ≤45dB
- Voltage(v)

  220V/110V
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)

  D556.6*W556.6
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)
- Wireless remote control(Y/N)
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)
- Total weight of package + product (kg)

  32
- Package size (D*W*H)

  615*630*410
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode

Installation Control Video

Data Download

GPCK-MB1000B three views
GPCK-MB1000B instruction manual
